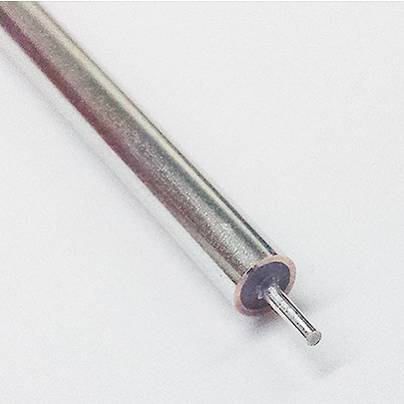

セミリジッドケーブルUT047スズメッキ(1.19φ)1m
販売価格

2,200円(税200円)

購入数


製品仕様書 (Product Specification)
環境関連資料(Environment-Related Documents)

〇製造元(Manufacturer)
日本エレパーツ株式会社
NIHON ELEPARTS CO.LTD

〇ケーブル(Cables Style)
SEMI-RIGID COAXIAL CABLE
UT047 (1.19φ) 1m

〇納期(Lead Time)
Usually 1 week
※It does not include weekend

○構成(Components)
内部導体(Center Conductor)
 銀メッキ銅覆鋼線(Silver Plated Copper Wire)
 外形(OD):0.29±0.01
絶縁体(Insulation)
 PTFE
 外形(OD):0.94±0.03
外部導体(Outer Conductor)
 Cu
 外形(OD):1.13±0.03

○仕様(Specification)
特性インピーダ ンス(Impedance)
 50Ω±2Ω
耐電圧(Proof Voltage)
 2000A.C.V/1min
標準静電容量(Capacitance)
 94nF/Km
使用温度範囲(Temperature range)
 -40〜125℃
許容曲げ半径(Allowable bending radius)
 3.0mm(Inner R)
標準減衰量(Attenuation)(at 1m)
 1GHz 1.06dB
 5GHz 2.45dB
 10GHz 3.55dB
 15GHz 4.42dB
 20GHz 5.17dB

○規格(Standard)
M17/151-00001 UT-47

○単価(Price)
1〜10:@2000 yen per one

※10本以上はお問い合わせください。
(Please contact us for more than 10.)
※10本以上のご注文は翌営業日に担当者から請求金額をご連絡いたします。
(If you order 10 or more, we will contact you on the next business day.)
