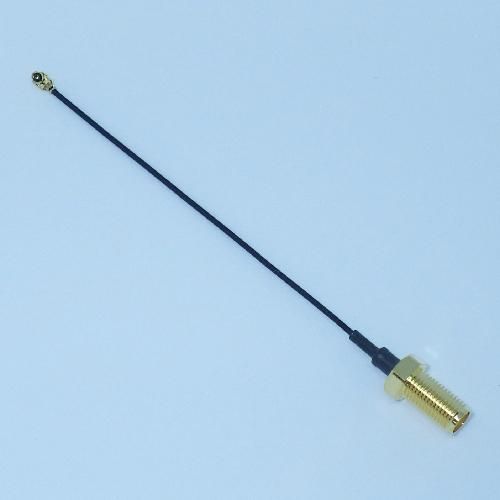

SMAJG-MHF4-0.81B-L=※※
販売価格

3,850円(税350円)

購入数


注文時、備考欄にご希望の長さを記載してください(60〜500mm)。または直接お問い合わせください。
Please indicate your desired length in the remarks column when ordering(60〜500mm). or Please contact us directly.info@eleparts.co.jp

製品仕様書    (Product Specification)
環境関連資料(Environment-Related Documents)

〇製造元(Manufacturer)
日本エレパーツ株式会社 NIHON ELEPARTS  CO., LTD.

〇ケーブル(Cables Style)
0.81φ  Coaxial Cables
Color: Black

〇納期(Lead Time)
Usually 1 week
※It does not include weekend

○仕様(Specification)
特性インピーダンス(Impedance) :50Ω
定格周波数(Working Frequency Range):DC〜6GHz
電圧定格波比(VSWR):1.3max(DC~3GHz) 1.5max(3GHz~6GHz)
挿入損失(Insertion Loss):0.05√f min (f:Frequency)
定格電圧(Voltage Rating):AC 500V
耐電圧(Proof Voltage):AC 1000V one min
接触抵抗(Contact Resistance):2.0mΩ max at DC 1A
絶縁抵抗(Insulation Resistance):5000MΩmin at DC500V
※仕様書と内容が異なる場合には、仕様書を参照してください。
※If it is different from the specification, refer to the specification sheet

〇勘合保証回数(Connector Life)
SMA 500 times min

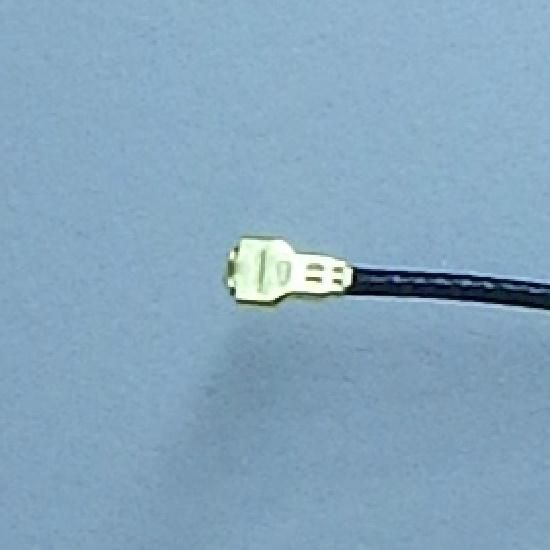

MHF4 30 times min

○規格(Standard)
SMA JIS-C-5410 MIL-C-39012
MHF4 DAIICHI SEIKO ORIGINAL

○重量(weight)
SMA:4.0g
MHF4:0.1g
0.81φ Coaxial Cables:0.02g/cm
※上記は参考表記になります。
※Please think at the reference level.

○数量ロット(Quantity lot)
1〜4  :@3500/pcs
5〜9  :@3000/pcs
10〜49 :@2500/pcs
50〜99 :@1500/pcs
100〜499:@950/pcs
500〜999:@850/pcs
※5本以上のご注文は翌営業日に担当者から請求金額をご連絡いたします。
※※If you need 5 or more, we will contact you from the person in charge.
